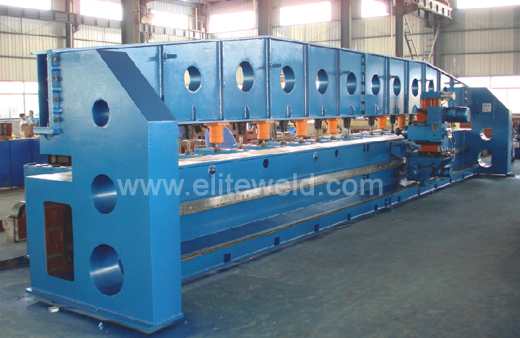

Compared with the traditional edge milling machines,this machine series is mountable in their tracks,more rational in structure by heat-treatment of the bench,more reliable and stable in the milling&turning head¡¯s running.The feed and feed-back systems are fully independent respectively.the feed-back is quick and is highly efficient.the angle of the milling tool¡¯s tray is convenient in adjustment,and the custom-built tool rest and the normal tool rest can be inter-converted.they are the updated products of the traditional edge milling machine.

Main Technical Parameters
Type	XBJ-6	XBJ-9	XBJ-12	XBJ-15
The angle of milling	0-45¡ã
The thickness of being processed steel plate	6-50 mm
The max depth of milling bevel edge at one time	12 mm
The traveling speed of crosswise milling	0.05~0.5 m/min
Back stroke milling speed	5 m/min
The rotational speed of milling and whittling spindle	125¡«800 rpm
The working pressure of hydraulic pressure system	¡Ü3.5 Mpa
The number of the cylinders	8	11	15	19
The height between the platform and the ground	900 mm
The power of driving motor	1.1/0.85 kW
The power of milling motor	3 kW
The power of oil pump motor	5.5 kW
