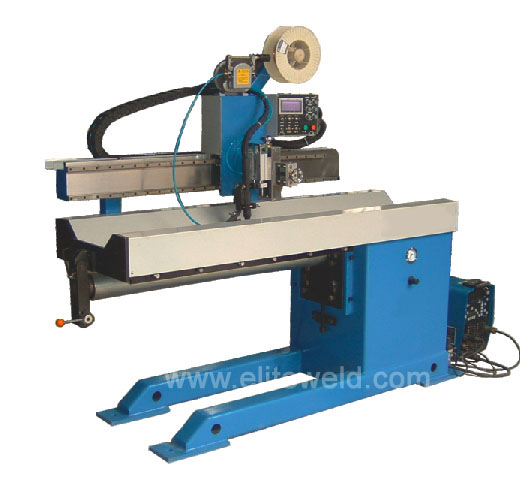

ZH series are one kind of special welding machine for welding vertical-beam of sheet.operating with argon-arc welding machine,gas-protected welding machine and plasm power,it is the necessary equipment for pressure vessel,chemical equipment,aero space device,locomotive,food machinery and appliance manufacturing.
| 主要技术参数 Main Technical Parameters |
| 规格型号 |
ZH-500 |
ZH-1000 |
ZH-1500 |
ZH-2000 |
ZH-2500 |
ZH-3000 |
ZH-3500 |
| 适用工件长度(mm) |
≤500 |
≤1000 |
≤1500 |
≤2000 |
≤2500 |
≤3000 |
≤3500 |
| 最小筒体直径(mm) |
φ110 |
φ150 |
φ180 |
φ230 |
φ280 |
φ340 |
φ400 |
| 适用工件板厚(mm) |
0.2～6 |
0.4～6 |
0.5～8 |
| 焊接速度(mm/min) |
150～1500 |
| 调速方式 |
变频无级调速 |
| 工件夹紧方式 |
气动夹紧 |
| 焊枪行走精度(mm) |
±0.1 |
±0.15 |
±0.2 | |
